產品說明
額定電壓：300V，額定溫度：80℃

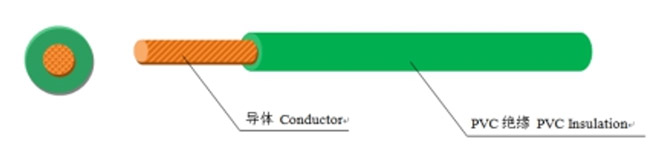

導體：使用單根或絞線32-16AWG裸銅或鍍錫絲
PVC絕緣：可通過UL VW-1及CUL FT1垂直耐燃試驗
應用：適用于一般電子、電器設備內部連線
|
導體類型 Conductor Type |
導體 Conductor |
絕緣 Insulation |
標準 長度Standard Length |
|||
|
線規 Spec |
線數/ |
直徑 Dia. |
標稱厚度 Nom.Thick. |
標稱外徑 |
||
|
AWG |
No./mm |
mm |
mm |
mm |
Ft(M) |
|
|
絞合導體 Stranded Conductor |
30 |
7/0.10 |
0.30 |
0.38 |
1.1 |
2000 ft (610m)
1000ft (305m) |
|
28 |
7/0.127 |
0.38 |
0.38 |
1.2 |
||
|
26 |
7/0.16 |
0.48 |
0.38 |
1.3 |
||
|
24 |
11/0.16 |
0.61 |
0.38 |
1.45 |
||
|
24 |
7/0.20 |
0.60 |
0.38 |
1.45 |
||
|
22 |
17/0.16 |
0.76 |
0.38 |
1.6 |
||
|
22 |
7/0.254 |
0.76 |
0.38 |
1.6 |
||
|
20 |
26/0.16 |
0.94 |
0.38 |
1.85 |
||
|
20 |
7/0.32 |
0.96 |
0.38 |
1.85 |
||
|
18 |
41/0.16 |
1.18 |
0.38 |
2.1 |
||
|
16 |
26/0.254 |
1.49 |
0.38 |
2.4 |
||
|
單根導體 solid |
28 |
1/0.32 |
0.32 |
0.38 |
1.15 |
|
|
26 |
1/0.404 |
0.404 |
0.38 |
1.25 |
||
|
24 |
1/0.511 |
0.511 |
0.38 |
1.40 |
||
|
22 |
1/0.643 |
0.643 |
0.38 |
1.55 |
||
|
20 |
1/0.813 |
0.813 |
0.38 |
1.70 |
||
|
18 |
1/1.02 |
1.02 |
0.38 |
1.96 |
||
|
16 |
1/1.29 |
1.29 |
0.38 |
2.15 |
||
